Toughened Glass for LED Lighting

Toughened glass also known as tempered glass, is a safe and optimized material option of LED Lighting for high light transmission and color value. It is a kind of safety glass specifically treated to enhance its durability and safety compared to regular glass.

Material Options

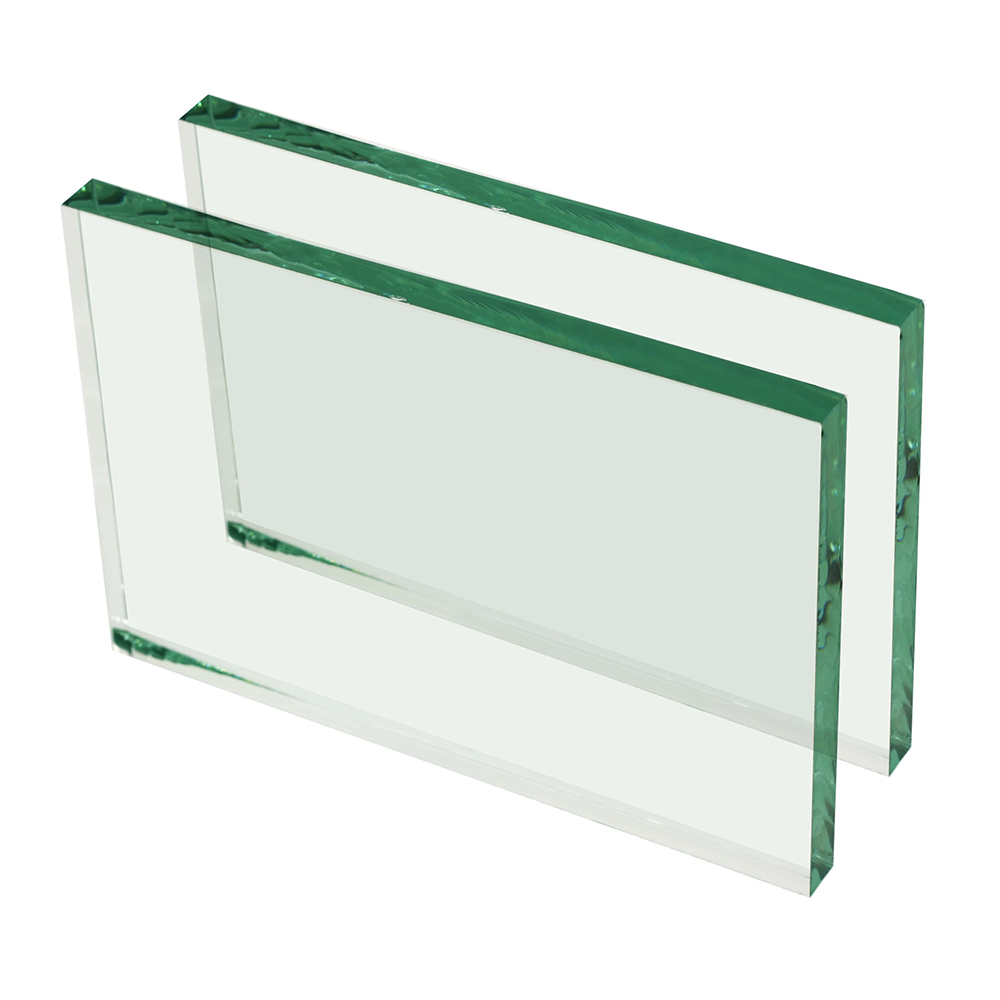

Clear Glass

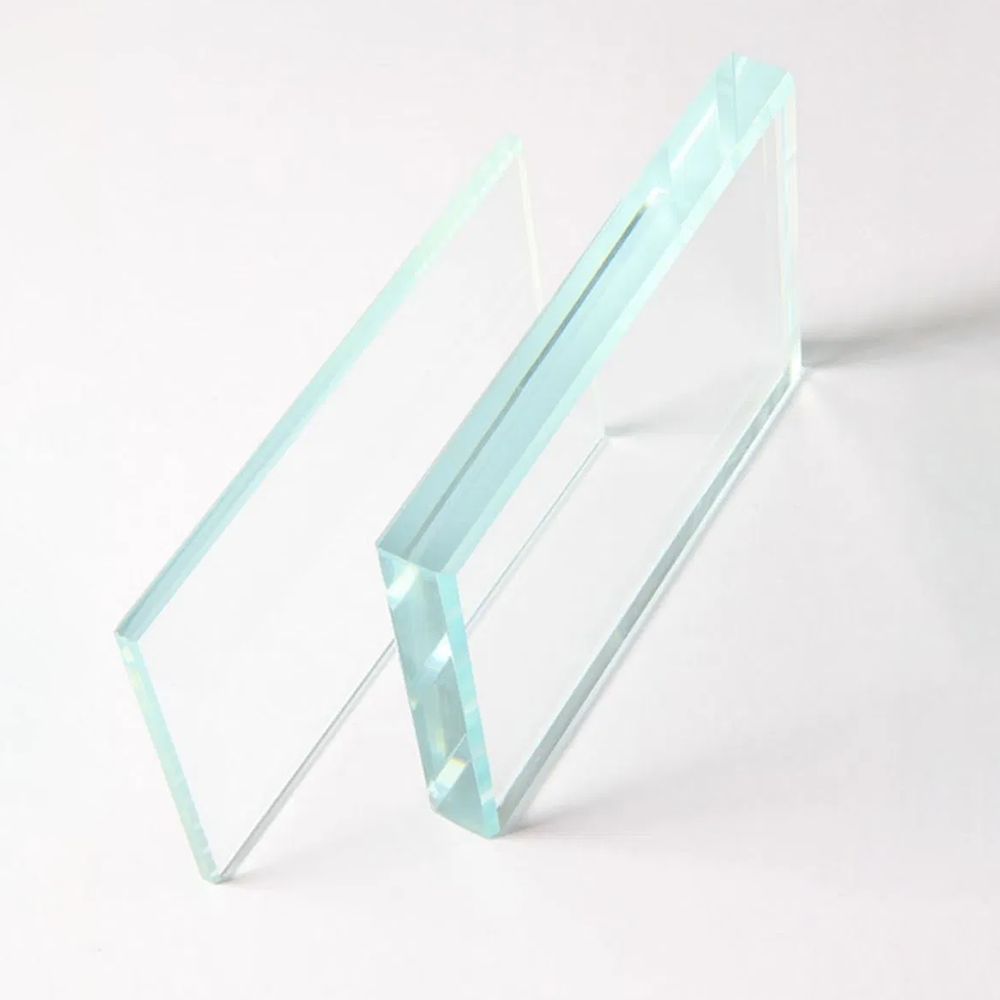

Low iron Glass

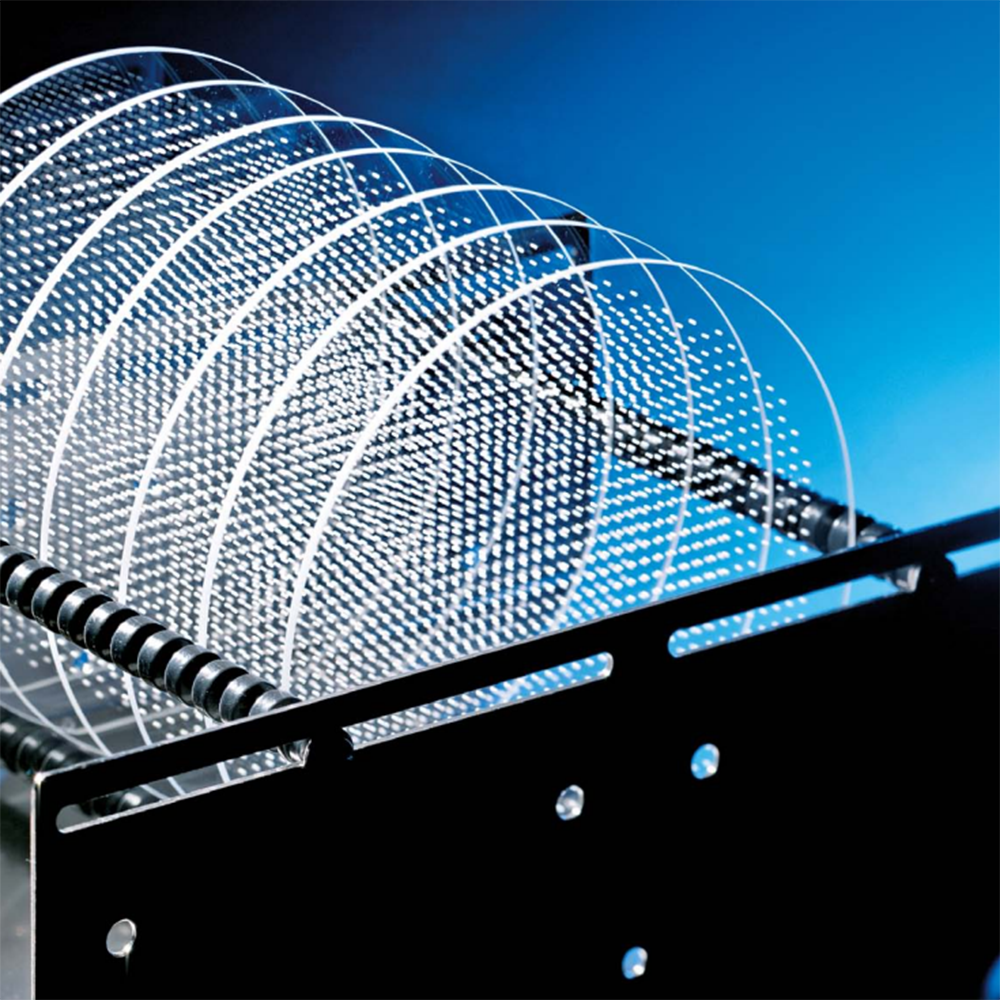

High borosilicate Glass

Item	Clear Glass	Low Iron Glass	High Borosilicate Glass
Thickness	1 to 15mm	1 to 15mm	1 to 15mm
Transmittance at Visible Light	≥84% (the thicker the glass, the lower the transmittance)	≥88% (the thicker the glass, the lower the transmittance)	≥89% (the thicker the glass, the lower the transmittance)
Glass Color	slight green hue at its edges	Ultra transparency	Extremely high transparency
Surface Hardness	≥6H	≥6H	≥6H
Features	l Green hue color glass l Cheap	l Neutral color glass l High transmittance	l High transmittance l Excellent resistance to rapid cooling and heating

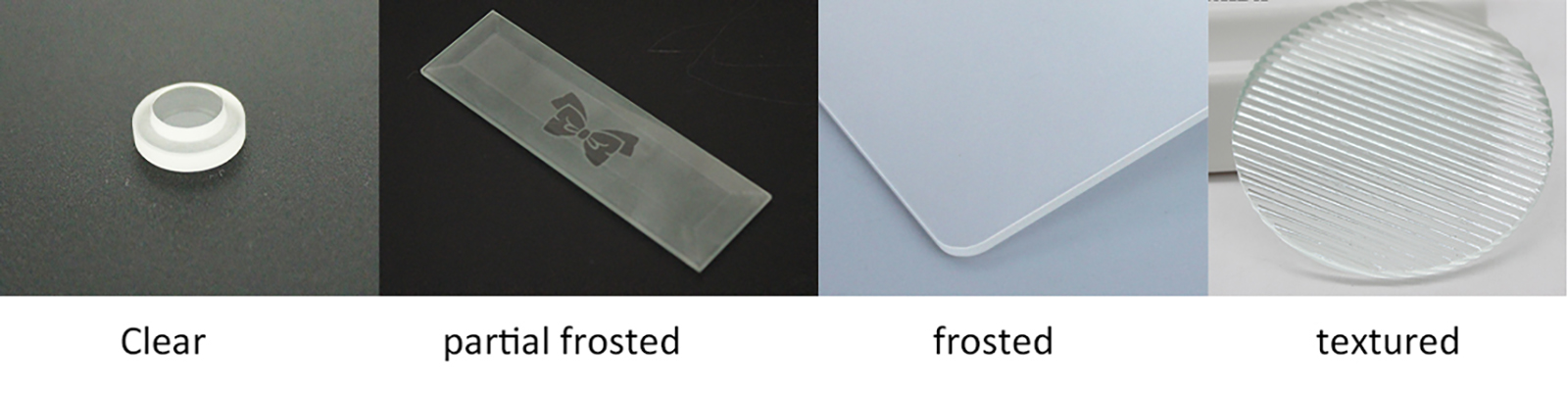

Multiple glass surface to select

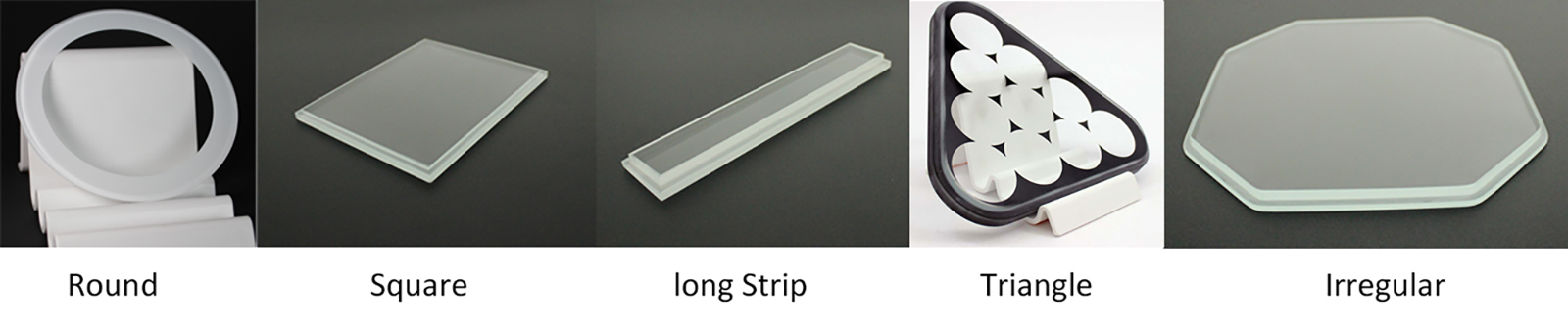

Customized Shape

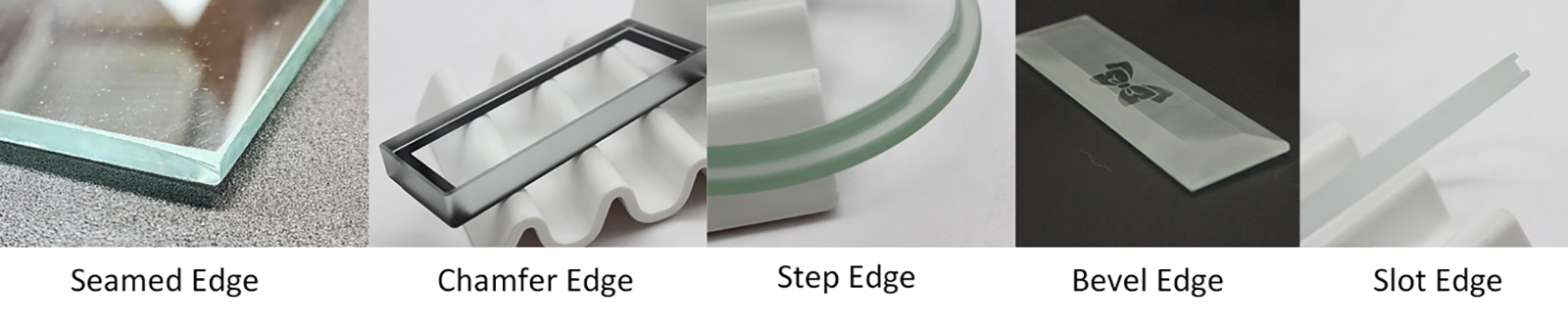

Edge Treatment Options

High Transmittance Option

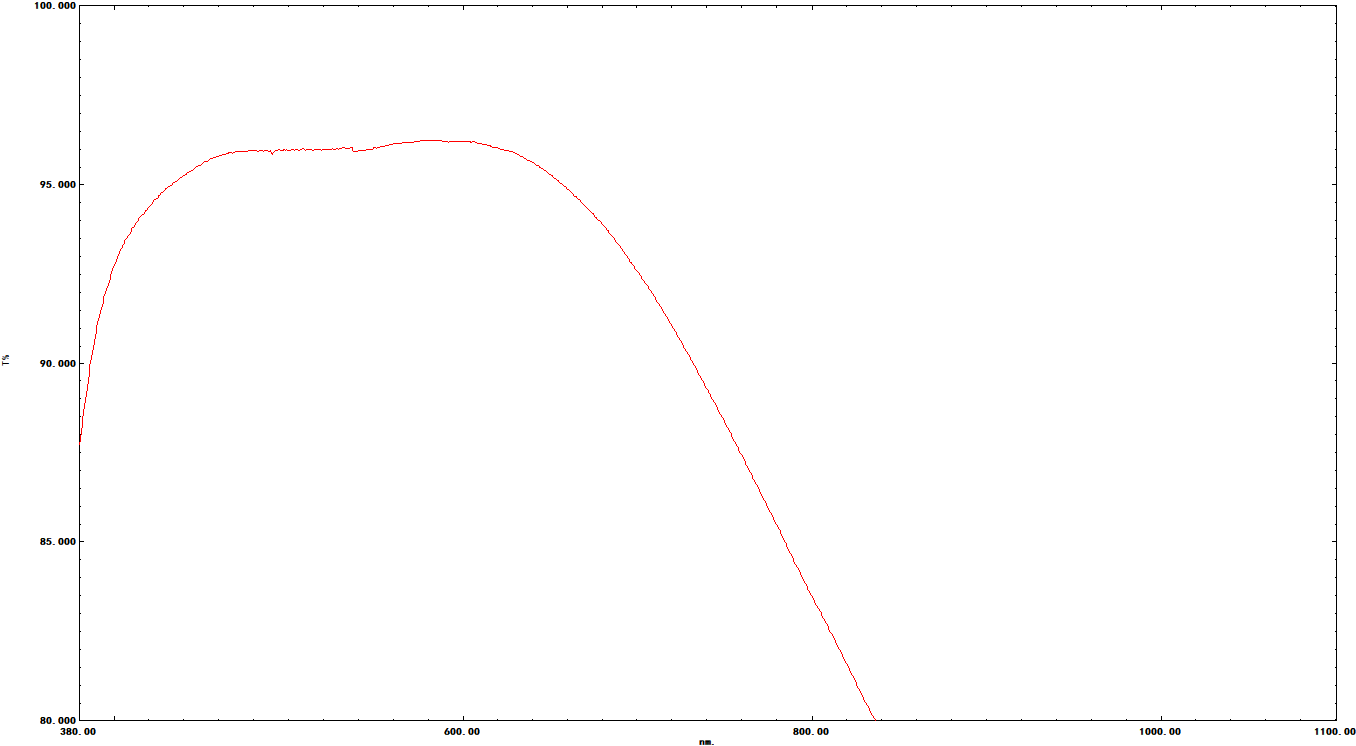

With adding anti-reflective coating, the transmittance can be increased 2 to 5% at visible light, ultraviolet or infrared range. It all can be customized depends on demand.

Item	Description
Raw Material	Tempered clear, ultra clear glass, boroslicate glass 3.3
Size	Minimum size 19mm and customized
Thickness	Generally 2~4mm, according to the design
Edge available	seams, corner dubbing, circle or flat ground, pencil, and polished etc
Structure	solid, holes etc.
Printing	ceramic printing (high temperature printing), digital printing...
Surface Treatment	Etching, anti-fogging coating, anti-reflective coating, easy-cleaning coating ...

Q1: How is your quality of products and quality guarantee policy?

A1: 100% full test before shipping and 100% compliance with the request of clients.
Q2: What is the payment method?

A2: T/T, Western Union, LC, Paypal.
Q3: What package do you use for the products?

A3: Safe and standard packing for export shipment (PE film cover, kraft paper/bubble bags parcel, and pack into carton or wooden box)

Contact us

Usages

Residential Illumination

Industrial Illumination

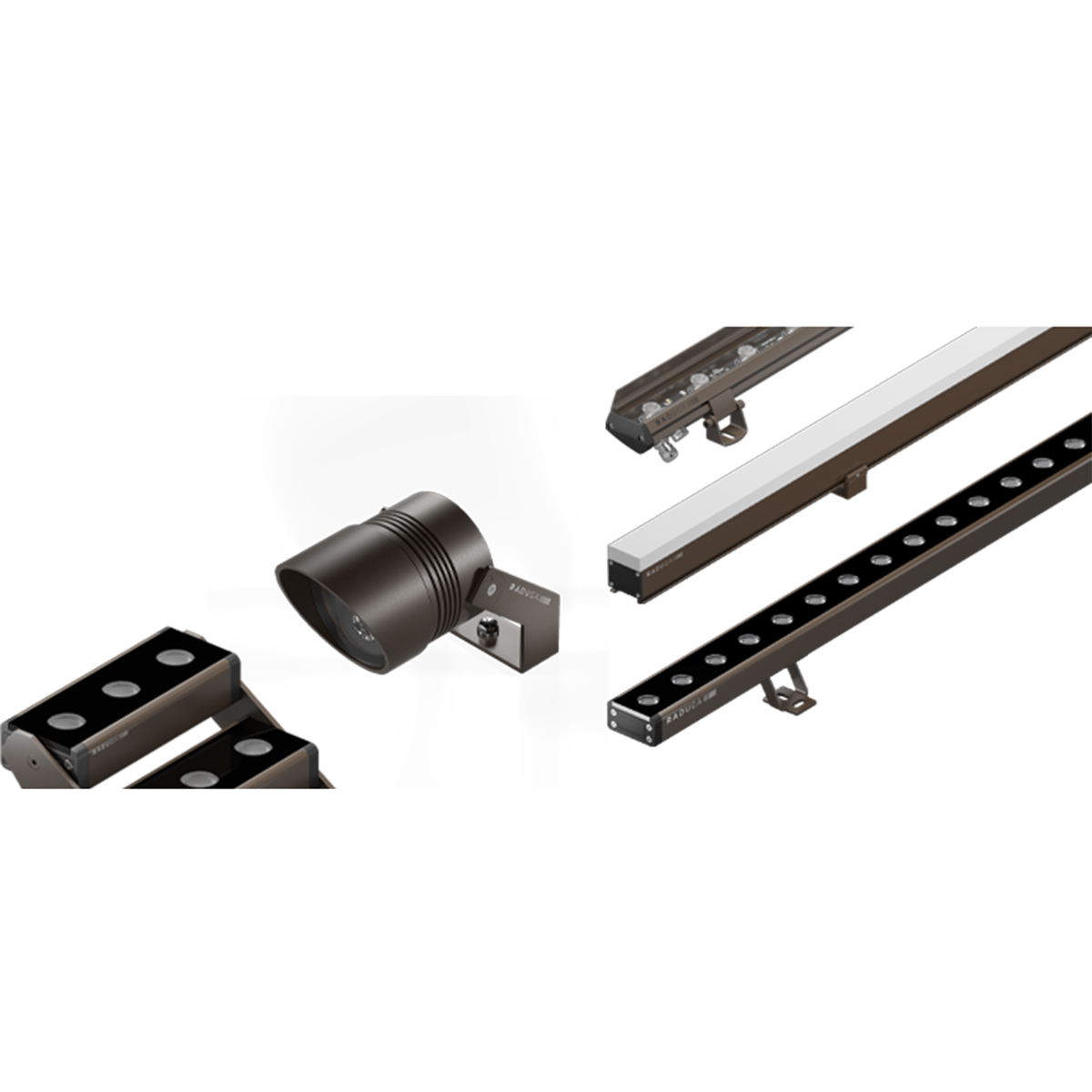

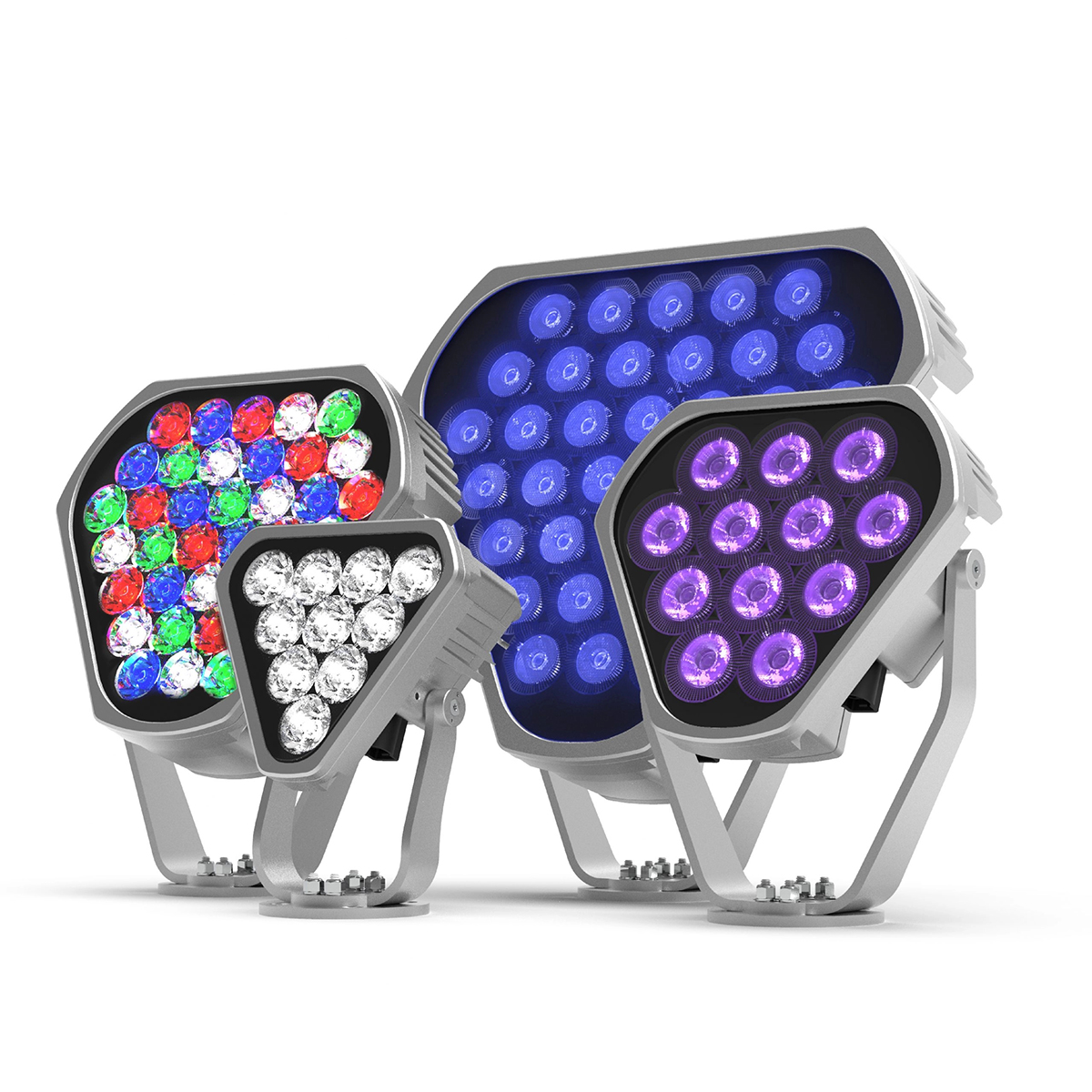

Commercial Illumination

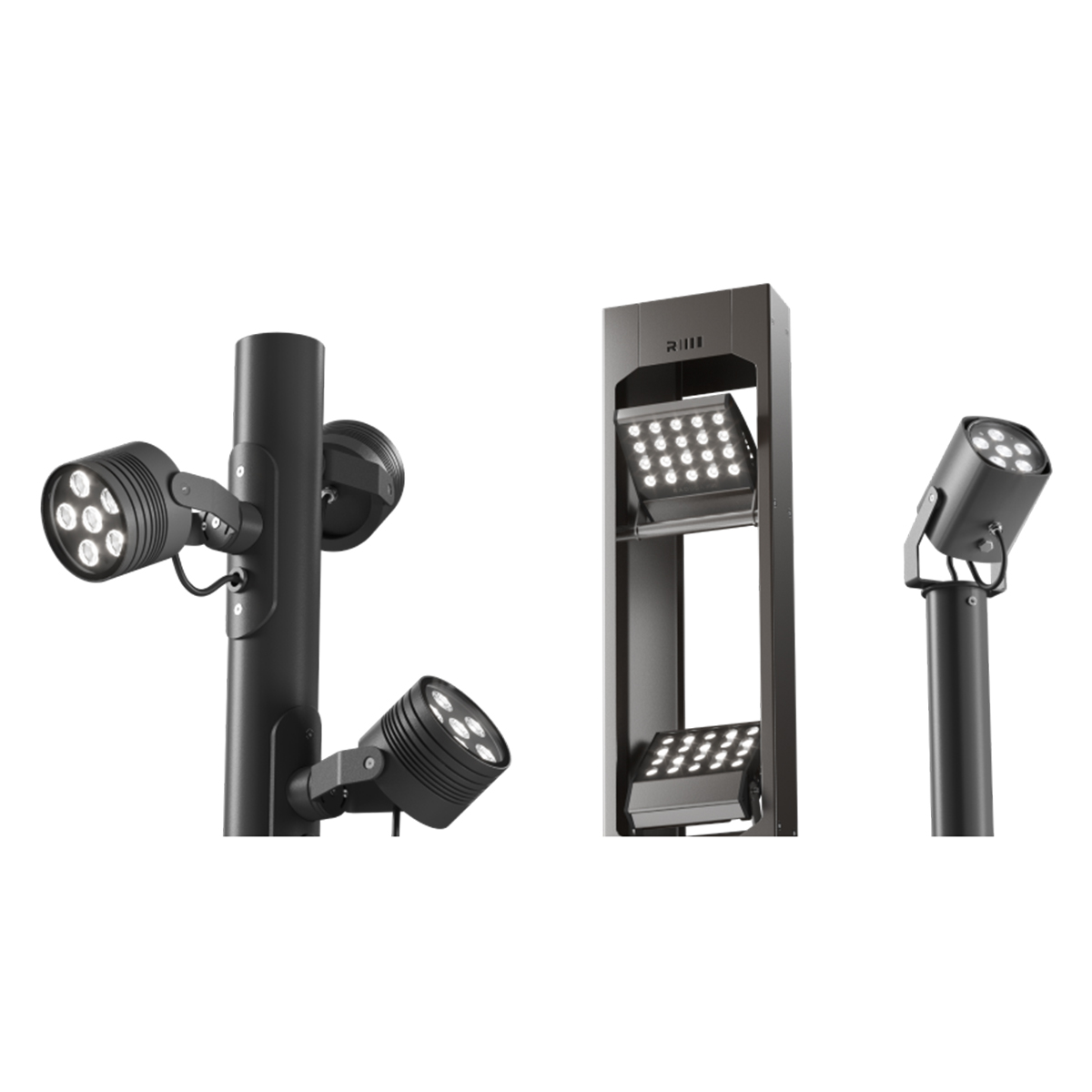

Walk Street Illumination

Other Application

Saida Glass is committed to collaborating with you to deeply understand your market and project requirements. With our specialisation in thin film optical coatings for custom glass and extensive manufacturing know-how, we stand out in the industry.
